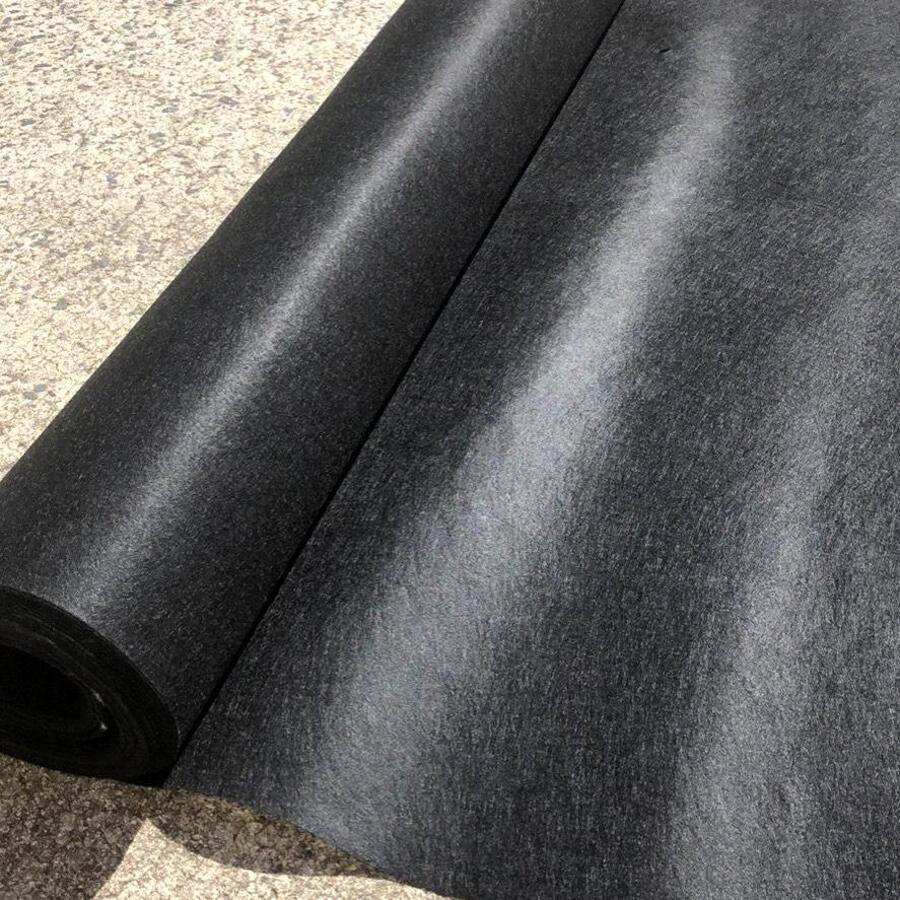

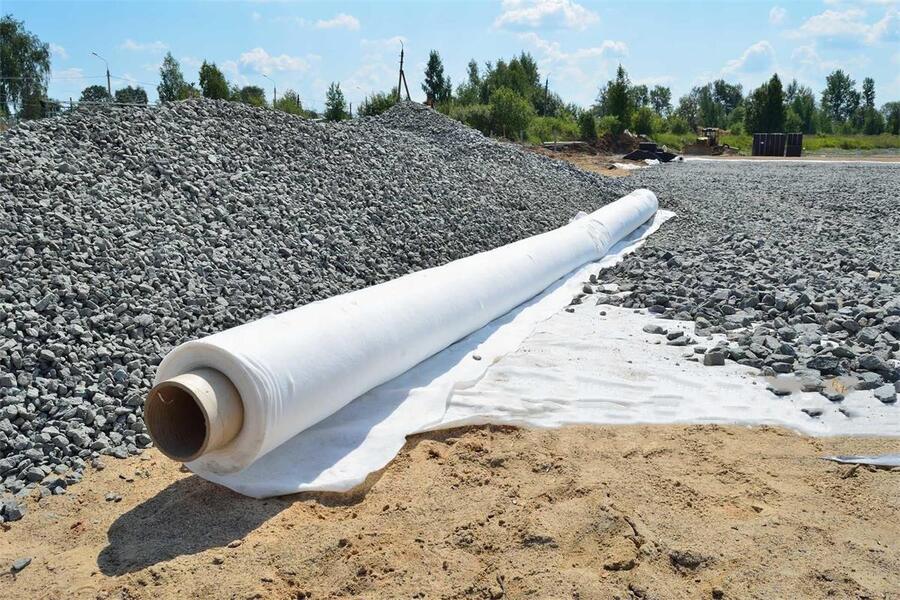

Nonwoven Geotextile

PET/PP needle-punched fabric, 80–1200 gsm, up to 7 m wide.

Staple-fiber and filament needle-punched nonwoven geotextiles provide high water flow for filtration and drainage while protecting liners from damage. Six functions in one fabric: separation, protection, erosion control, filtration, drainage and reinforcement.

Features

  • High permeability with stable effective pore size (O90 0.07–0.2 mm)
  • Excellent cushion protection for geomembranes
  • PET or PP fibers; white, black, grey or green
  • Break strength 4.5 – 40 kN/m across the range

Applications

  • Railways, roadways and airport runways
  • Embankments and coastal protection
  • Drainage layers and liner protection in landfills
  • Filtration behind retaining structures

Key Specifications

ItemValue
Mass per unit area80 – 1200 g/m²
Roll width1 – 7 m
Roll length25 – 300 m
Break strength4.5 – 40 kN/m
CBR puncture0.8 – 7.0 kN
Permeability coefficientK×(10⁻¹ – 10⁻³) cm/s

Custom specifications available on request. Ask for the full technical datasheet.
